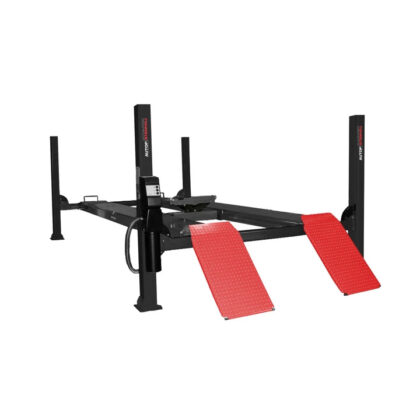

Major 4.40 4-søylet løfter 4T
Major 4.40 4-søylet løfter 4T - Image 2
Major 4.40 4-søylet løfter 4T - Image 3
Major 4.40 4-søylet løfter 4T - Image 4

Major 4.40 4-søylet løfter 4T

Kan leveres med glatte kjørebaner eller som hjulstillingsløfter. Hjulstillingsløfter med utsparring for svingskiver, og glideplater intergrert. Leveres med 4 tonns kapsitet (5.5T er også tilgjengelig). Med markedets stiveste kjørebaner og oppkjøring tilpasset lave biler er dette den idelle hjulstillingsløfter for person- og vare-biler. Løftehøyde på 2 meter er ideelt for alle personer på verkstedet. Kjørebaner med lengde på inntil 5,5 meter og kan leveres galvanisert. Kan leveres med pnaumatisk låsing av glideplater.

Beskrivelse

Søyler:

  • Integrert eksentrisk bremsesystem
  • Rørbruddssikring
  • Obstruksjonssystem (Hindringssystem)
  • Pneumatisk parkeringssystem i høydeinnstillbare paler
  • Pumpeanlegg med motor og styring plasert på forreste venstre søyle
  • Trykknappstyring med alarmsignal
  • Hydraulikksylinder under venstre kjørebane
  • Løfting og senking via wiretrekk
  • Nødsenkeventil

Kjørebaner:

  • En bevegelig kjørebane som standard
  • Kjørebaner forberedt for AUTOPSTENHOJ traversløfter
SKU: NO009452+ Category: Tag:

Tekniske data

S = glatte kjørebaner
WL = kjørebaner klargjort for svingskiver og glideplater integrert for hjulstillingskontroll

Løftekapasitet 4 000 kg
Slaglengde 44 = 1 690 mm
48 = 1 850 mm
51 = 1 850 mm
Løftehøyde
S 44 = 1 840
S 48 = 2 000 I WL 48 = 2.050 mm
S 51 = 2 000 I WL 51 = 2.050 mm
Løfte- / senketid ~ 24 / 26 sec.
Motor 3 kW
Styrespenning 3×230 / 400V – 50 Hz – 25 / 16 A
Kjørebaner:
Totallengde 44 = 5 490 mm
48 = 5 890 mm
51 = 6 190 mm
Utnyttet kjørebanelengde 44 = 4 400 mm
48 = 4 800 mm
51 = 5 100 mm
Totalhøyde 2 445 mm
Akselavstand, min. – max. 51 S: max. 4 600 mm
51 WL: min. 2 100 mm, max. 4 100 mm
Kjørebanebredde 550 mm
Avstand mellom kjørebaner 750 – 990 mm
Min. høyde S = 160 mm
WL = 210 mm
Bredde mellom søyler 44 = 2 600 mm
48 = 2 600/ 3 000 mm
51 = 3 000 mm
Totalbredde ytre kant bunnplate 26 = 3 032

S = glatte kjørebaner
WL = kjørebaner klargjort for svingskiver og glideplater integrert for hjulstillingskontroll
SG / WLG = galvaniserte kjørebaner

Major 4.40 – 26-44-S – powder coated
009452 Major 4.40 – 26-44-S, 230-400/3/50, powder coated
778792 Set of 2 standard drive-on ramps for Major 4.40 S, 950mm – powder coated
778734 Set of 2 wheel stops for Major 4.40 S- powder coated
Major 4.40 – 26-44-SG – hot dip galvanized
009451 Major 4.40 – 26-44-SG, 230-400/3/50, hot dip galvanized
778793 Set of 2 standard drive-on ramps for Major 4.40 S, 950mm – hot dip galvanized
778759 Set of 2 wheel stops for Major 4.40 S – hot dip galvanized
Major 4.40 – 26-48-S – powder coated
009461 Major 4.40 – 26-48-S, 230-400/3/50, powder coated
778792 Set of 2 standard drive-on ramps for Major 4.40 S, 950mm – powder coated
778734 Set of 2 wheel stops for Major 4.40 S- powder coated
Major 4.40 – 26-48-SG – hot dip galvanized
009462 Major 4.40 – 26-48-SG, 230-400/3/50, hot dip galvanized
778793 Set of 2 standard drive-on ramps for Major 4.40 S, 950mm – hot dip galvanized
778759 Set of 2 wheel stops for Major 4.40 S – hot dip galvanized
Major 4.40 – 26-48-WL – powder coated
009453 Major 4.40 – 26-48-WL, 230-400/3/50, powder coated
778792 Set of 2 standard drive-on ramps for Major 4.40 S, 950mm – powder coated
778735 Set of 2 wheel stops for Major 4.40/4.55 WL – powder coated
Major 4.40 – 26-48-WLG – hot dip galvanized
009454 Major 4.40 – 26-48-WLG, 230-400/3/50, hot dip galvanized
778793 Set of 2 standard drive-on ramps for Major 4.40 S, 950mm – hot dip galvanized
778761 Set of 2 wheel stops for Major 4.40/4.55 WL – hot dip galvanized
Major 4.40 – 30-48-S – powder coated
009471 Major 4.40 – 30-48-S, 230-400/3/50, powder coated
778792 Set of 2 standard drive-on ramps for Major 4.40 S, 950mm – powder coated
778734 Set of 2 wheel stops for Major 4.40 S- powder coated
Major 4.40 – 30-48-SG – hot dip galvanized
009472 Major 4.40 – 30-48-SG, 230-400/3/50, hot dip galvanized
778793 Set of 2 standard drive-on ramps for Major 4.40 S, 950mm – hot dip galvanized
778759 Set of 2 wheel stops for Major 4.40 S – hot dip galvanized
Major 4.40 – 30-48-WL – powder coated
009492 Major 4.40 – 30-48-WL, 230-400/3/50, powder coated
778792 Set of 2 standard drive-on ramps for Major 4.40 S, 950mm – powder coated
778735 Set of 2 wheel stops for Major 4.40/4.55 WL – powder coated
Major 4.40 – 30-48-WLG – hot dip galvanized
009491 Major 4.40 – 30-48-WLG, 230-400/3/50, hot dip galvanized
778793 Set of 2 standard drive-on ramps for Major 4.40 S, 950mm – hot dip galvanized
778761 Set of 2 wheel stops for Major 4.40/4.55 WL – hot dip galvanized
Major 4.40 – 30-51-S – powder coated
009500 Major 4.40 – 30-51-S, 230-400/3/50, powder coated
778792 Set of 2 standard drive-on ramps for Major 4.40 S, 950mm – powder coated
778734 Set of 2 wheel stops for Major 4.40 S- powder coated
Major 4.40 – 30-51-SG – hot dip galvanized
009501 Major 4.40 – 30-51-SG, 230-400/3/50, hot dip galvanized
778793 Set of 2 standard drive-on ramps for Major 4.40 S, 950mm – hot dip galvanized
778759 Set of 2 wheel stops for Major 4.40 S – hot dip galvanized
Major 4.40 – 30-51-WL – powder coated
009532 Major 4.40 – 30-51-WL, 230-400/3/50, powder coated
778792 Set of 2 standard drive-on ramps for Major 4.40 S, 950mm – powder coated
778735 Set of 2 wheel stops for Major 4.40/4.55 WL – powder coated
Major 4.40 – 30-51-WLG – hot dip galvanized
009527 Major 4.40 – 30-51-WLG, 230-400/3/50, hot dip galvanized
778793 Set of 2 standard drive-on ramps for Major 4.40 S, 950mm – hot dip galvanized
778761 Set of 2 wheel stops for Major 4.40/4.55 WL – hot dip galvanized

Prisforespørsel, sendes til tilbud@preqas.no
